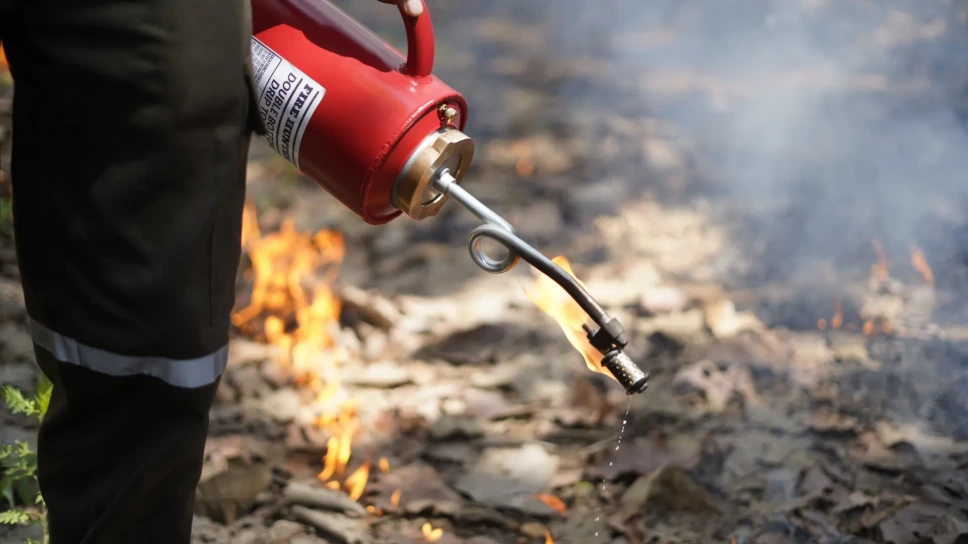

DRIP TORCH

CODE: FHU 096

It has 1 siphoned discharge tube with a fuse protected by wax paper. Autonomy of 2000m of fire line.

Portable device setting composed of a cylindrical tank equipped with a vertical, lateral, balanced

handle. with an eductor tube, an air trap, combustion burner and drip nozzle.

The eductor tube, the burner and the nozzle can be inserted inside the tank in an inverted way to

facilitate the transport of the torch. The tank has a 63.3 mm diameter top filling neck with an 89.00mm

threaded closure, the cap is of the (ring) type and has two opposing gutter-type projections which are

suitable with universal wrench adjustment. Material: The tank, the eductor tube, the handle, the

burner holder and the asbestos holder are made of ultra-light aluminum.

The breathing system, the drip nozzle and the adjustment ring for the eductor ring are made of brass-

plated bronze.

The finish is aluminum with a 4.7 liter capacity.

Dimensions: Total Height (Closed torch) 35.5 cm + 1cm

Total height (Operative torch) 64.8 cm + 1cm

Outside diameter 15.3 cm + 1cm

Maximum total weight (Dry torch) 2.3 kg

Total weight (torch with fuel) 7.2 kg

Made of ultra-light aluminum alloy, breathing system. mouthpiece and adjustment ring made of brass-

plated bronze, it is used for fire control-

Meets US Forest Service Specification No. 5100-616.
