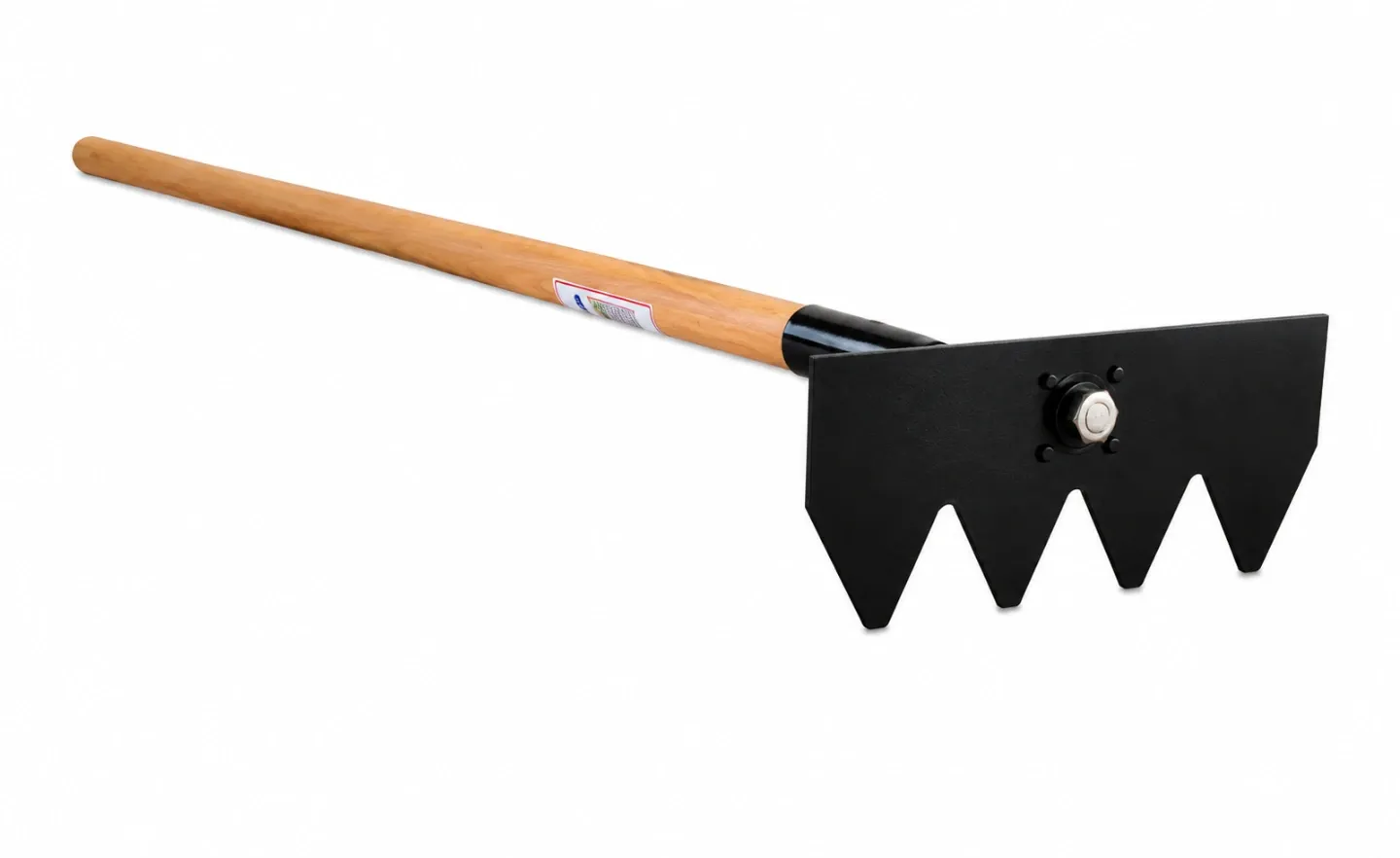

Firebreak rake, used to rake mineral soil, dig, roll logs and cut weeds.
It has a handle of American ash for its flexibility and its resistance to impacts.
Specialized tool for fighting forest fires, 129 + 1.0 cm. of total length by its central axis.
Features:
Blade: Forged from a single piece of high-strength high carbon steel; Its middle part measures
12.45 cm + 0.5 cm long, 22.86 + 0.5 cm wide and 3.048 ± 0.0254 mm thick.
Steel: AISI / SAE 1080 quality
Hardness: Hardness range of 38 to 48 degrees on the Rockwell C scale.
Teeth: On one of its edges it has six teeth equidistant at a 4.76 cm separation, 9.05 + 0.5 cm
in length, ending in a rounded tip.
Cut: Opposite edge measures 22.54 cm. In length, it has an external edge in its entirety at an
angle of 45 °.
Finish: The entire plate is protected with oxidation-resistant black paint and is free of deep
marks, fissures, cracks, porosities and deformations.
Cap Assembly: The components that join the blade to the handle are together the design and
dimensions of the components.
Steel: It is provided with a conical sleeve, measuring E 21.59 + 0.31 cm. in length, a diameter
of 3.81 cm for the widest part and 2.22 cm for the narrowest part (base).
The bushing is welded at its base to a small steel plate, which is firmly assembled by the
central part of the metal plate, through four rivets arranged in a square shape (one in each
corner of the forged plate with the bushing) at a distance of 3 cm from each other.
Handle length 5 ''
